an authorized StruXure Pergola Dealer in Kentucky.
The Motorized Pergola That Lets You Control the Weather

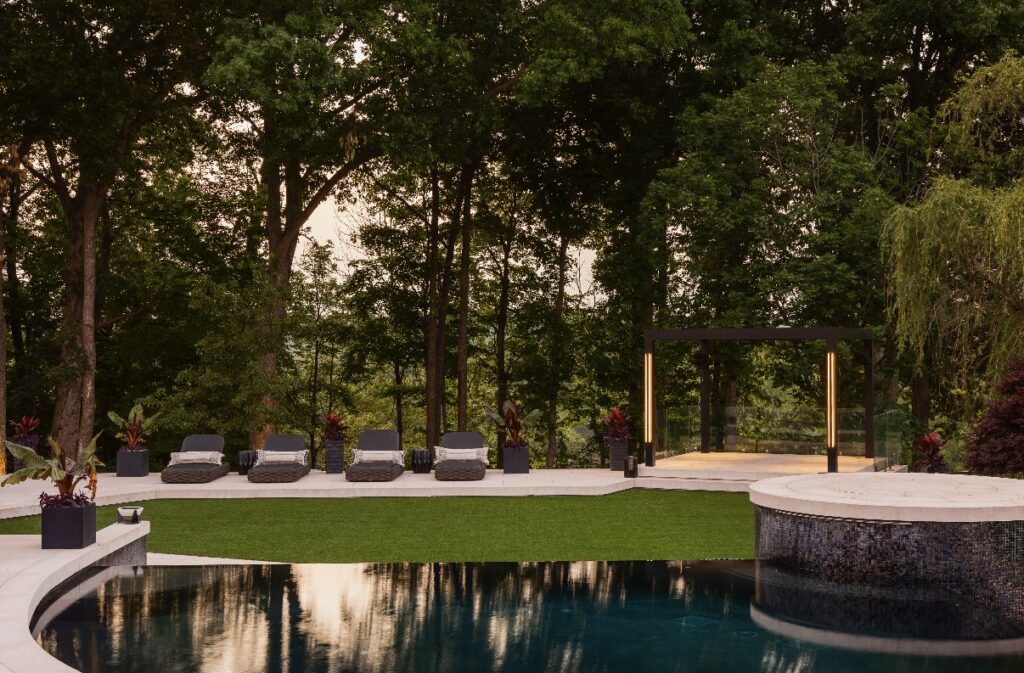

Louvered Outdoor is an authorized StruXure Pergola Dealer in Kentucky. We design and install StruXure Pergola X and Cabana X systems in Louisville, Lexington, Northern Kentucky and the surrounding areas.
Visit Our Shelbyville Design Center
The Problem
You built a beautiful patio, deck, or outdoor kitchen. But every time you plan a dinner outside, you check the forecast three times. Rain cancels the party. The summer sun makes the space unbearable by noon. And that gorgeous setup sits empty more than it should.
The Solution
StruXure's Pergola X gives you total control over your outdoor space. Open the louvers for full sun. Angle them for filtered light. Close them completely when the rain rolls in. All from your phone, your voice, or a simple remote. Your outdoor space works for you now, not against you.
StruXure Product Lineup
Two Systems, Endless Possibilities
We are the premier StruXure Louvered Pergola Dealer in Kentucky.Pergola X
The flagship motorized louvered pergola system from StruXure. Fully customizable, built from extruded powder coated aluminum, and engineered to handle hurricane force winds and heavy snow loads. The adjustable louvers rotate up to 170 degrees, giving you precise control over sunlight, shade, and rain protection. Available freestanding or attached to your existing structure. The Pergola X is ICC certified, meaning it meets the highest building safety standards on the market.
Three louver options are available. The Pivot 6 is the most popular for residential use, combining smart technology with sleek design. The Pivot 6 XL spans further and handles three times more rainwater, making it ideal for commercial projects and large outdoor spaces. The Pivot 6 Slide gives you full open sky by retracting the louvers completely.
Cabana X
A versatile 10x10 modular cabana system that works as a standalone structure or expands by connecting multiple units in any direction. Built from the same structural grade extruded aluminum as the Pergola X with 4 posts, 4 beams, and 17 adjustable louvers. Available in three configurations: the Core model for clean, minimalist shade; the Core+ with integrated color changing LED lighting and remote control; and the Core+ Tech with app controlled louvers and built in weather detection sensors.
Customize with interchangeable side panels (solid, slat, tilt, or monogram), Sunbrella fabric curtains, architectural corbels, and power panels that hold a TV. No concrete footings required, so it installs in days.
Engineering That Performs
What Makes StruXure Different
Smart Weather Control
Integrated rain sensors automatically close the louvers when rain begins. Wind sensors open the roof at 60 mph to protect the structure. Control everything through the StruXure app, Amazon Alexa, Google Assistant, a handheld remote, or a wall mounted keypad.
Watertight Gutter System
When closed, the louvers interlock to create a watertight seal. A patented hidden gutter system channels rainwater through the posts and away from your space. No dripping, no puddles, no ruined cushions.
ICC Certified Engineering
StruXure is the only louvered pergola manufacturer with ICC certification. That means every system is engineered to meet the highest building safety standards. Rated for hurricane force winds and snow loads from 20 to 70 pounds per square foot depending on your location.
Made in America
Every Pergola X and Cabana X is designed, engineered, and manufactured in the United States using fully extruded aluminum with an AAMA 2604 chemical textured powder coat finish. Stainless steel fasteners throughout.
Built for Accessories
The Smart Frame TraX System conceals all wiring inside internal channels for a clean look. Add wet rated can lighting, uplighting, ceiling fans, patio heaters, Sonance outdoor speakers, and motorized retractable screens with MagnaTrack technology.
Class A Fire Rated
Both the Pergola X and Cabana X carry a Class A Flame Spread Rating and a Class A Smoke Developed Index Rating. Non combustible materials throughout, providing added safety for residential and commercial installations.
At a Glance
StruXure Pergola X Specifications
| Specification | Detail |
|---|---|
| Material | Fully extruded, powder coated aluminum |
| Louver Rotation | Up to 170 degrees |
| Largest Single Zone | 12 ft wide x 20 ft long |
| Multi Zone | Unlimited zones connected for any size space |
| Wind Rating | Engineered for hurricane force winds |
| Snow Load | 20 to 70 lbs per sq ft (varies by location) |
| Finish | AAMA 2604 chemical textured powder coat |
| Fasteners | Stainless steel throughout |
| Fire Rating | Class A Flame Spread, Class A Smoke Developed |
| Certification | ICC certified (only louvered pergola manufacturer) |
| Installation | Freestanding or attached to existing structure |
| Automation | Somfy motors, rain and wind sensors standard |
| Controls | App, Amazon Alexa, Google Assistant, remote, wall keypad |
| Structural Warranty | 15 years |
| Motor Warranty | 5 years |
| Electronics Warranty | 3 years |
| Warranty Transfer | Fully transferable to new homeowner |
Custom Finishes
Choose Your Color
Six standard colors complement almost any home or commercial architecture. Woodgrain finishes and thousands of custom color options are also available for an added cost.
White
Beige
Adobe
Gray
Bronze
Black
Woodgrain
Perfect for Any Space
Where StruXure Shines in Kentucky
From backyard patios in Louisville to restaurant courtyards in Lexington, StruXure Pergola X and Cabana X systems are ideal for residential patios and decks, outdoor kitchens, pool and spa areas, lanais and verandas, entryways and courtyards, rooftop lounges, restaurant and bar patios, country clubs and resorts, and commercial hospitality venues. If you can dream it, we can cover it.
Common Questions
StruXure Pergola X FAQ
How much does a StruXure Pergola X cost in Kentucky?
There is no one size fits all price because every Pergola X is custom built to your space. The cost depends on the size, number of zones, louver type, color selection, and accessories you choose. Louvered Outdoor provides 100% free design consultations and estimates so you can see exactly what fits your budget before committing. Financing options are also available for qualified buyers.
Can a StruXure pergola handle Kentucky weather?
Absolutely. StruXure systems are engineered to withstand hurricane force winds and snow loads up to 70 pounds per square foot. Kentucky's mix of summer heat, spring storms, and winter ice is well within the performance range of the Pergola X. Integrated sensors automatically close the louvers when it rains and open them under high wind conditions to protect the structure.
Is a StruXure Pergola X waterproof?
Yes. When fully closed, the louvers interlock to create a watertight seal. A hidden gutter system built into the posts channels rainwater away from your space, keeping your furniture, guests, and flooring completely dry.
What warranty comes with a StruXure system?
All Pergola X systems come with a 15 year structural warranty, a 5 year motor warranty, and a 3 year electronics warranty. The warranty is fully transferable if you sell your home, which adds value to your property.
Can I control my StruXure pergola from my phone?
Yes. The Pergola X app is available on the Apple App Store and Google Play. You can adjust louver angles from fully open to fully closed or anywhere in between, set automation preferences, and monitor weather sensors. Voice control through Amazon Alexa and Google Assistant is also built in.
Can a StruXure pergola be attached to my house?
Yes. The Pergola X can be installed as a freestanding structure or attached directly to your existing home, deck, or building. Our team evaluates your specific situation during the design consultation and recommends the best installation approach.
Where does Louvered Outdoor install StruXure systems?
We serve Louisville, Lexington, Northern Kentucky, and the surrounding areas. We also take on select projects beyond those regions. Contact us to discuss your location.
Can I add screens, fans, heaters, and lights to my StruXure pergola?
Yes. The Pergola X is designed to integrate a full range of accessories including motorized retractable screens, ceiling fans, patio heaters, wet rated can lighting, uplighting, and outdoor speakers. All wiring runs through concealed internal channels so nothing is visible from the outside.
What is the difference between Pergola X and Cabana X?
The Pergola X is a fully custom louvered pergola system that can be built to virtually any size by connecting multiple zones. The Cabana X is a modular 10x10 cabana with the same adjustable louver technology but in a compact, freestanding format that requires no concrete footings. Multiple Cabana X units can be connected together to create larger configurations.
